Drone flight controller explained
The flight controller is the most critical component of any drone. It continuously processes sensor data and adjusts motor speeds hundreds of times per second to maintain stable flight.
Sensor Fusion
Flight controllers rely on sensor fusion, combining data from multiple sensors:
- Gyroscope
- Accelerometer
- Magnetometer
- Barometer
- GPS
Algorithms such as Kalman filters combine these inputs to estimate the drone’s orientation and position.
Stabilization Loop
A typical drone runs a control loop at 200–1000 Hz.
The loop performs the following tasks:
- Read sensor data
- Estimate orientation
- Compare with pilot commands
- Adjust motor speeds
This process keeps the drone balanced even in wind or turbulence.

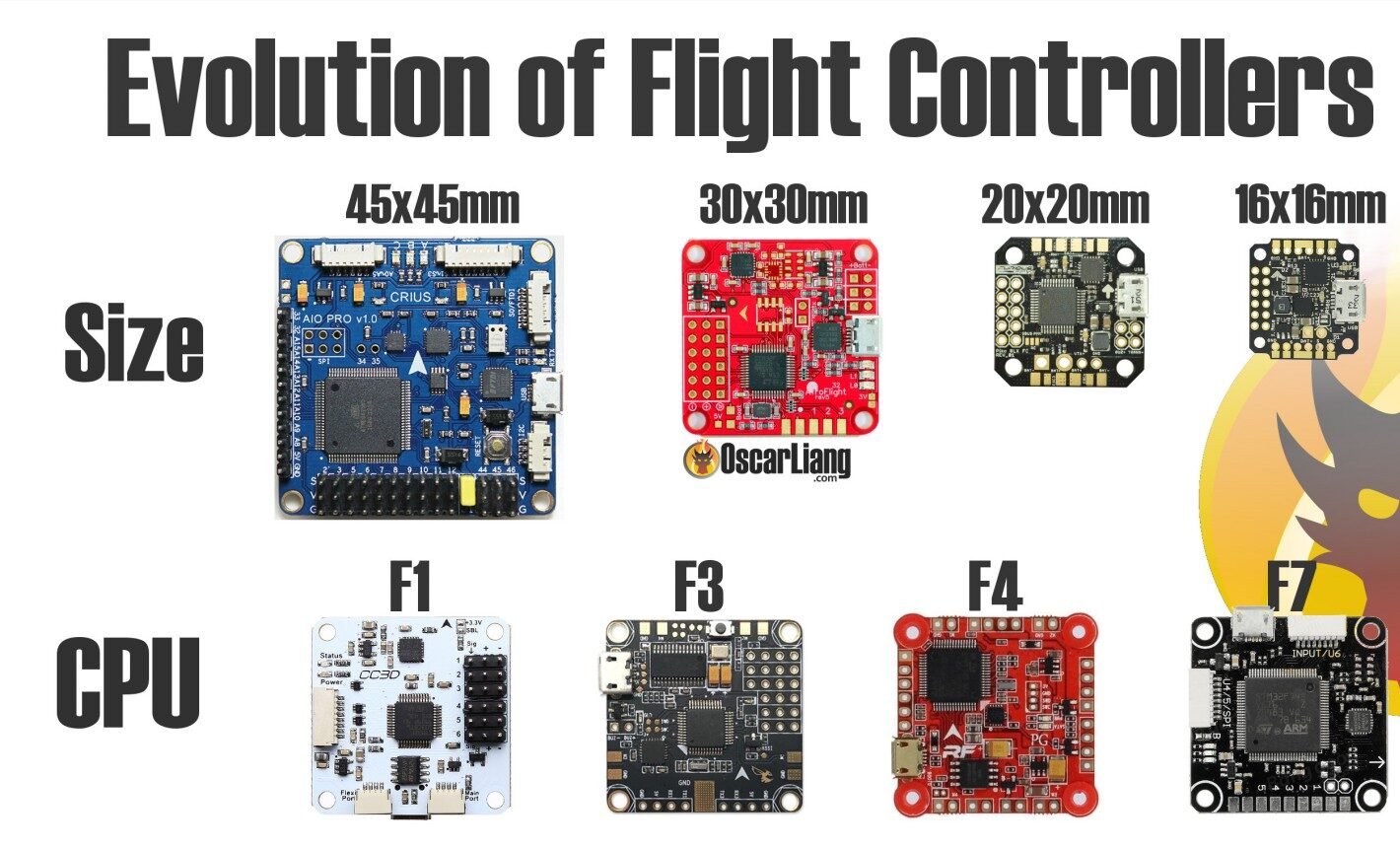

Popular Flight Controllers
Examples include:
- Pixhawk
- CubePilot
- DJI A3
- Betaflight-based controllers
These systems support autonomous flight, waypoint missions, and sensor integration.
